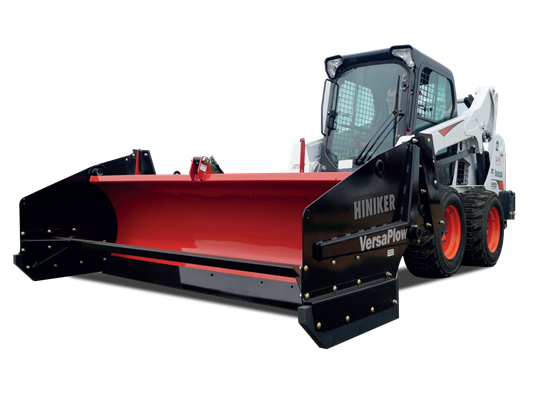

Torsion-Trip V-Plow

This revolutionary design provides the ultimate in efficiency, combining the functions of a box-style containment pusher, a backdrag containment box, and a conventional snowplow into one rugged piece of equipment. Hydraulically roll the end panels into any position from the cab. All three functions are always at your fingertips.

Push

With side panels in the forward positions the VersaPlow is a high-capacity snow pusher.

Pull

Roll the side panels rearward to form a super-efficient backdrag box plow.

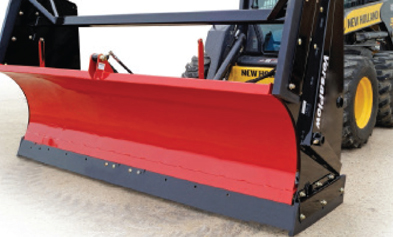

Windrow & Stack

The VersaPlow also features full hydraulic angling capabilities for conventional windrow plowing.

Fast, Easy Hydraulic Controls

Change the configuration of VersaPlow in seconds. No need to mount or re-mount equipment. No need to leave your cab!

Choose Your Edge

VersaPlow is available in 8-foot and 10-foot blade widths with a choice of steel trip-edge or urethane resilient-edge configurations.

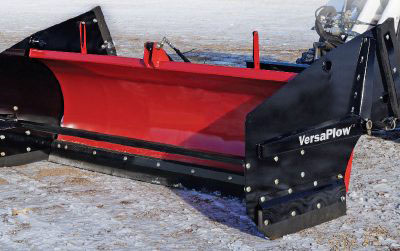

Steel Trip-Edge

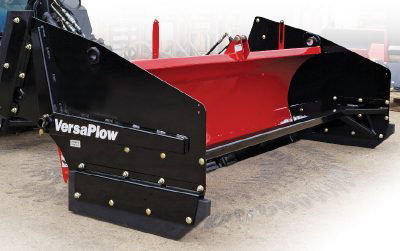

Urethane Resilient-Edge

8 & 10 Foot Blade Widths

Features

Hydraulic Outlets

Requires a single pair of hydraulic outlets. An electrical diverter valve controls flow to either the angle or end panel rotation cylinders. Available with a 14 pin connector (to fit most skid steers and compact loaders) or a 7-pin CANbus adapter (for late model Bobcat® machines) or a universal single-button diverter control and harness.

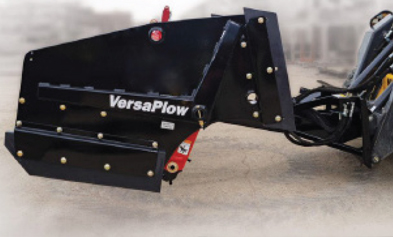

Floating Oscillating Hitch

Floating Oscillating Hitch Available floating oscillating hitch option permits up to 12 inches of vertical travel at the cutting edge. Requires a single pair of hydraulic outlets. An electrical diverter valve controls flow to either the angle or end panel rotation cylinders. Available with a 14 pin connector (to fit most skid steers and compact loaders) or a 7-pin CANbus adapter (for late model Bobcat [R] machines) or a universal single-button diverter control and harness.

Specifications

VersaPlow Specifications
Model	4208	4210
Width	96″	120″
Cutting Width	Steel Trip-Edge	Steel Trip-Edge
Weight with Standard Hitch	1249 lb.	1386 lb.
Weight with Floating Hitch*	1374 lb.	1511 lb.

*Allows up to 11 inches of blade movement.
